型號

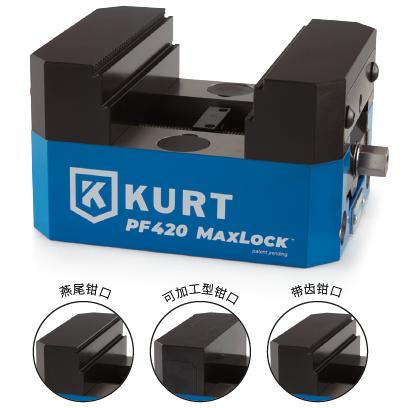

鉗口類型 |
HP420
帶齒鉗口 |
HP420D
燕尾鉗口 |
HP420C
可加工型腔鉗口 |
HP440
帶齒鉗口 |
HP440D
燕尾鉗口 |
HP440C
可加工型腔鉗口 |
HP460
帶齒鉗口 |
HP460D
燕尾鉗口 |
HP460C
可加工型腔鉗口 |

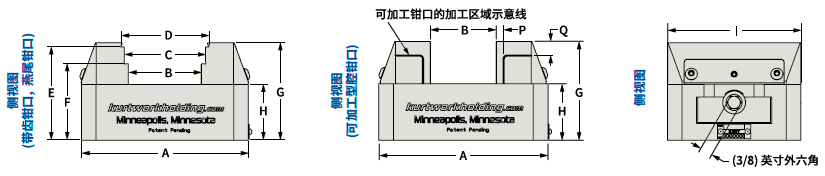

| A |
127.00 |
127.00 |
127.00 |
177.80 |
177.80 |
177.80 |
228.60 |
228.60 |
228.60 |
| B |
1.52/55.63 |
1.52/55.63 |
0/49.28 |
1.52/106.43 |
1.52/106.43 |
0/100.08 |
1.52/157.23 |
1.52/157.23 |
0/150.88 |
| C |
7.87/61.98 |
7.87/61.98 |
N/A |
7.87/112.78 |
7.87/112.78 |
N/A |
7.87/163.58 |
7.87/163.58 |
N/A |
| D |
14.22/68.33 |
14.22/66.80 |
N/A |
14.22/119.13 |
14.22/117.60 |
N/A |
14.22/169.93 |
14.22/168.40 |
N/A |
| E |
71.04 |
71.04 |
71.04 |
71.04 |
71.04 |
71.04 |
71.04 |
71.04 |
71.04 |
| F |
58.34 |
58.34 |
58.34 |
58.34 |
58.34 |
58.34 |
58.34 |
58.34 |
58.34 |
| G |
74.22 |
74.22 |
74.22 |
74.22 |
74.22 |
74.22 |
74.22 |
74.22 |
74.22 |
| H |
42.47 |
42.47 |
42.47 |
42.47 |
42.47 |
42.47 |
42.47 |
42.47 |
42.47 |

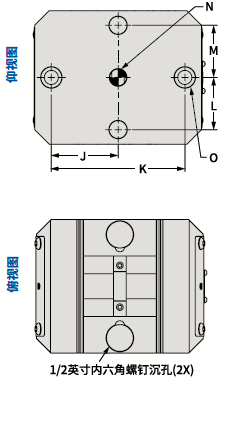

| I |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
| J |
50.80 |
50.80 |
50.80 |
50.80 |
50.80 |
50.80 |
50.80 |
50.80 |
50.80 |
| K |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
| L |
39.70 |
39.70 |
39.70 |
39.70 |
39.70 |
39.70 |
39.70 |
39.70 |
39.70 |
| M |
39.70 |
39.70 |
39.70 |
39.70 |
39.70 |
39.70 |
39.70 |
39.70 |
39.70 |
| N |
(Ø0.500) |
(Ø0.500) |
(Ø0.500) |
(Ø0.500) |
(Ø0.500) |
(Ø0.500) |
(Ø0.500) |
(Ø0.500) |
(Ø0.500) |
| O |
(Ø0.625) |
(Ø0.625) |
(Ø0.625) |
(Ø0.625) |
(Ø0.625) |
(Ø0.625) |
(Ø0.625) |
(Ø0.625) |
(Ø0.625) |
| O |
(1/2-13)
THD |
(1/2-13)
THD |
(1/2-13)
THD |
(1/2-13)
THD |
(1/2-13)
THD |
(1/2-13)
THD |
(1/2-13)
THD |
(1/2-13)
THD |
(1/2-13)
THD |
| P |
N/A |
N/A |
5.61 |
N/A |
N/A |
5.61 |
N/A |
N/A |
5.61 |
| Q |
N/A |
N/A |
10.59 |
N/A |
N/A |
10.59 |
N/A |
N/A |
10.59 |
| 重量kg |
5 |
5 |
5 |
6 |
6 |
6 |
8 |
8 |
8 |
| 夾緊力表 |
| 扭矩Nm |
夾緊力kN |
| 13.5 |
2.2 |
| 27.1 |
5.3 |
| 40.6 |
8.5 |
| 54.2 |
11.1 |
|
